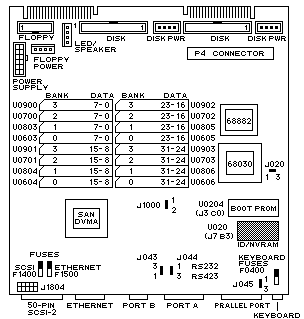

Use 1MB SIMM
| JUMPER | PINS | SETTONG | DESCRIPTION |
|---|---|---|---|
| J1000 | 1-2 | OUT | Watchdog reset(test) |
| J020 | 1-2 | IN | 68882 20MHz |
| 3-4 | OUT | 68882 40MHz | |
| J043 J044 | 2-3 | IN | RS232C(-12V) |
| 1-2 | IN | RS232C(+12V) | |
| J043 J044 | 1-2 | IN | RS423(-5V) |
| 2-3 | IN | RS423(+5) |
Use 1MB SIMM
